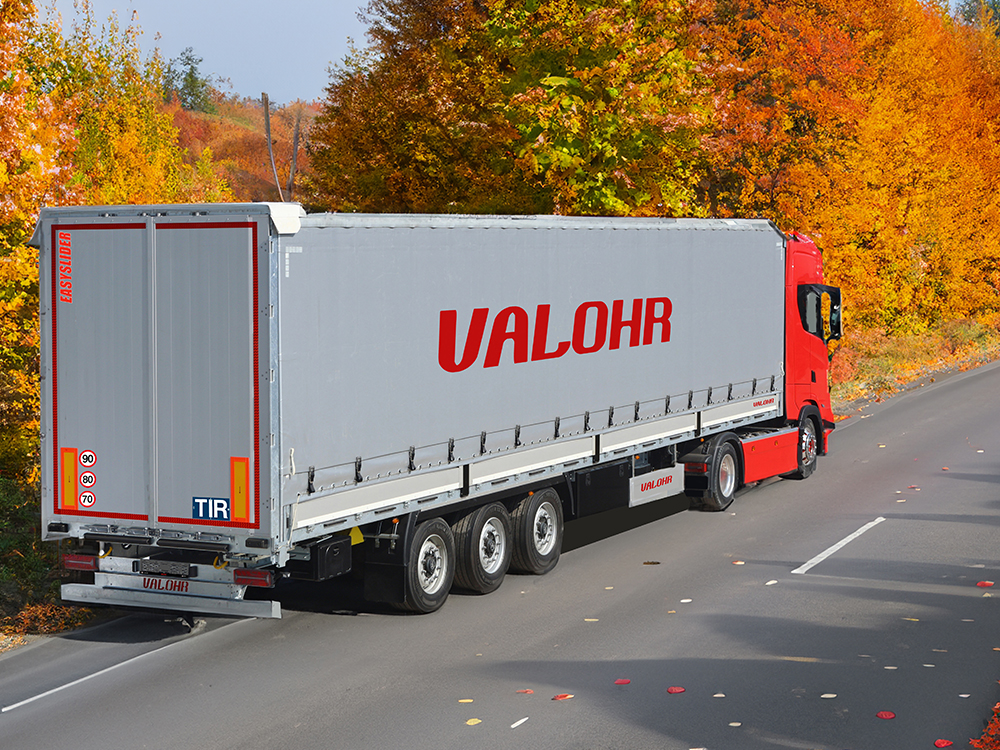

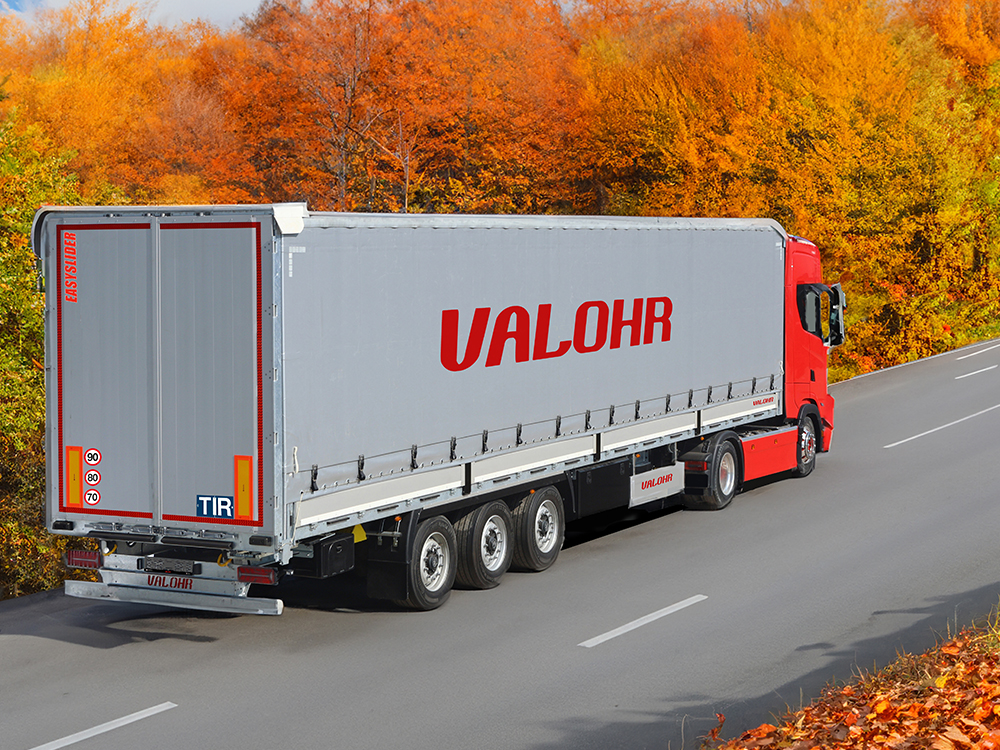

Valohr EasySlider

CHASSIS

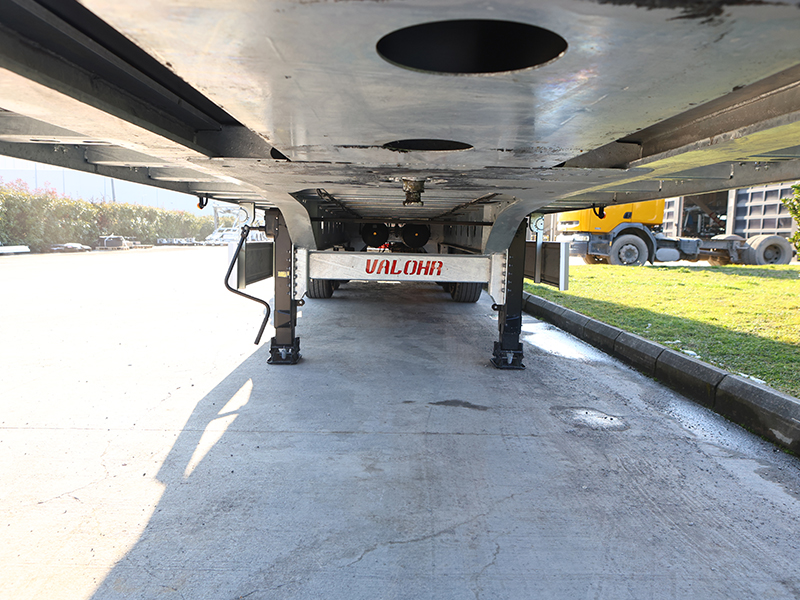

It is manufactured from high quality and high strength steel, reinforced with hot dip galvanization method applied with Lohr expertise in accordance with ISO 1726 norms. It consists of two I-section runners and is connected to the main cross and king pin cross

BRAKE SYSTEM

There is a dual circuit electro-pneumatic ebs 2s/2m wabco brand brake system with voltage supply (24V) from the brake light, which includes anti-blocking (ABS) system and yaw control (RSS) system in accordance with UN ECE R13 regulation.

AXLES

3 BPW brand axles with disc brakes, each with a capacity of 9 tons

ELECTRICAL SYSTEM

There is a 24V lighting system with 1x15 pin socket in accordance with UN ECE R48 regulation and ADR legislation. Front position lamps, side position lamps and rear stop lamps have LED lighting system.

FLOORING

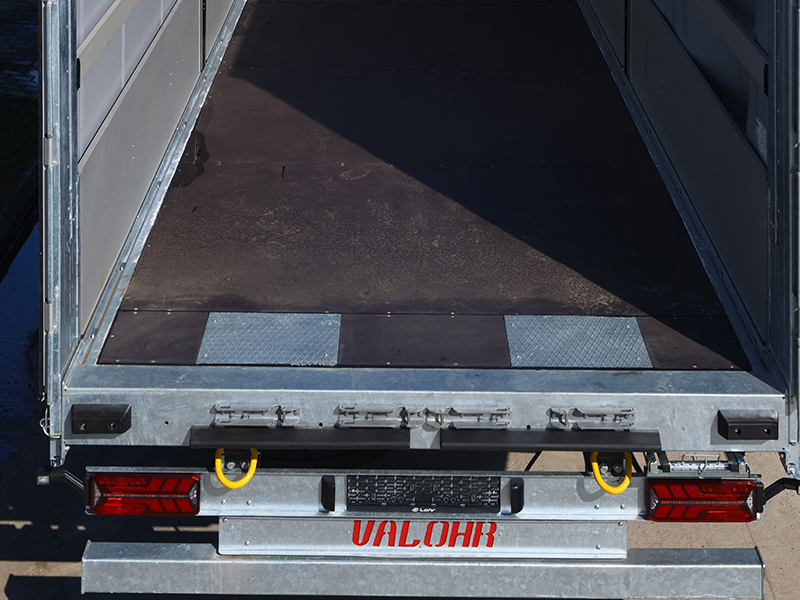

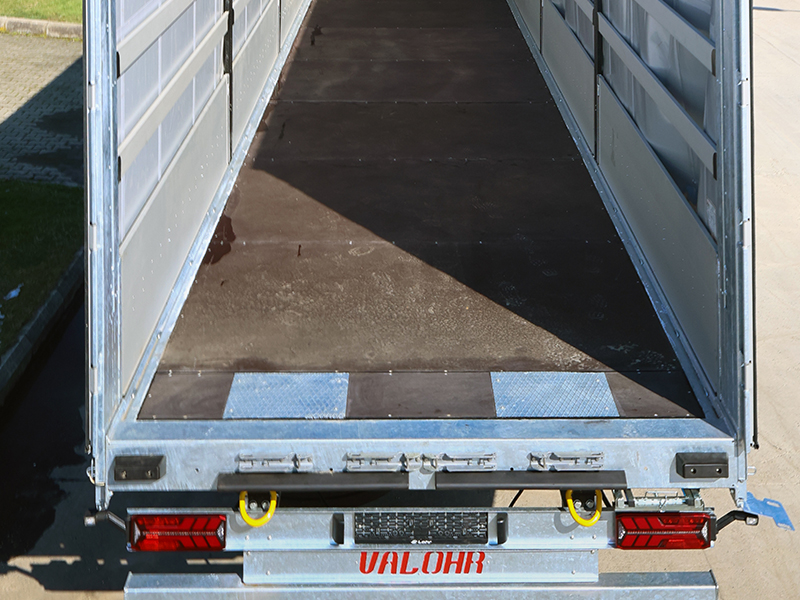

There is a 30 mm thick phenol resin coated plywood base that is resistant to 7200 kg forklift axle load in accordance with EN283 norms, reinforced with omega profiles.

LOAD FIXING

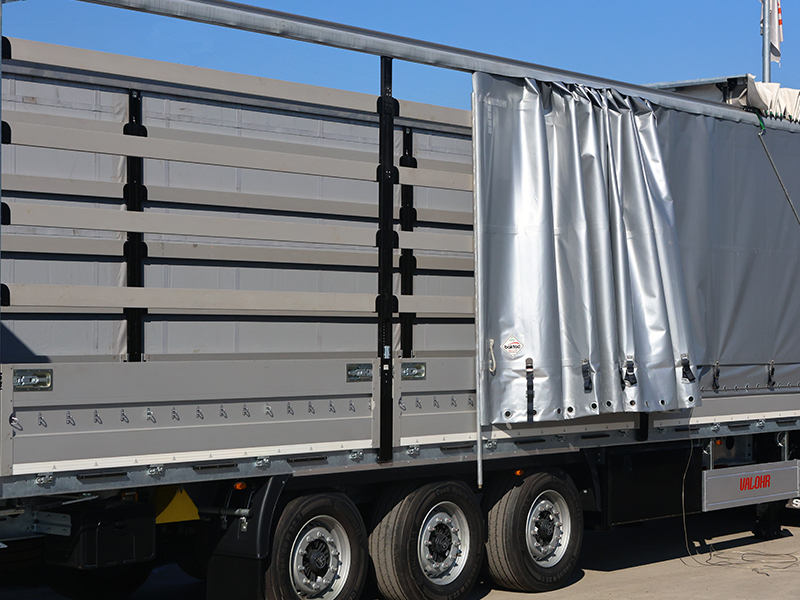

There are load attachment points on both sides at intervals on the side rev. Each load attachment point provides a capacity of 2.5 tons and is suitable for all types of ratchet straps

FRONT PANEL TYPE ROOF TYPE

There is a galvanized steel full front panel and protection sheet.

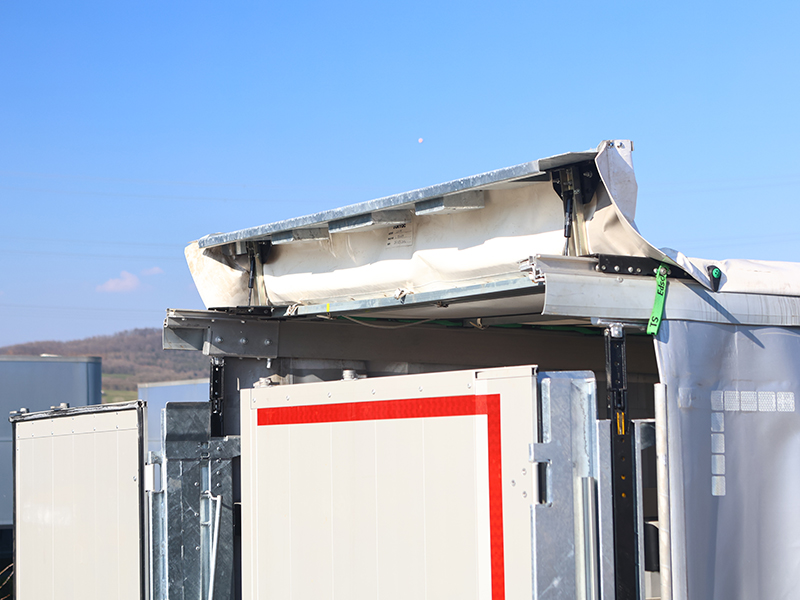

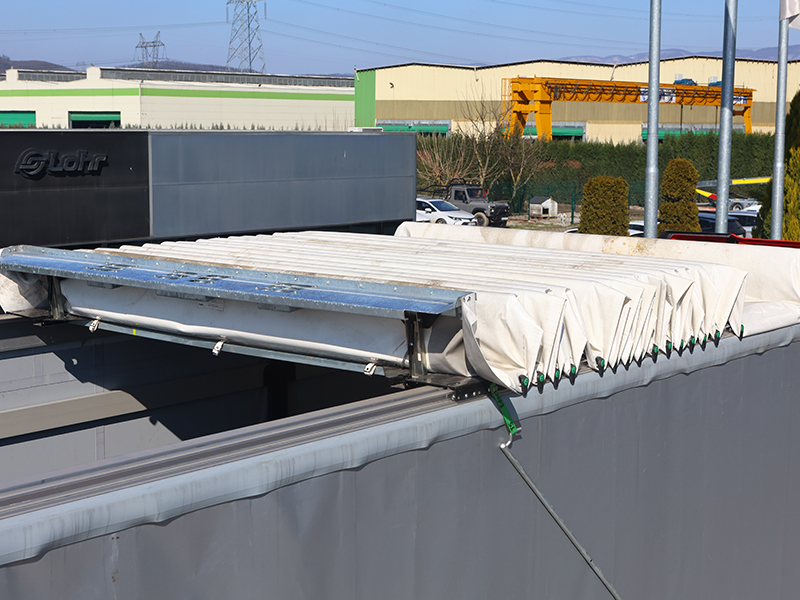

It is equipped with a Versus brand, single-sided sliding roof system that can be opened from the rear.
